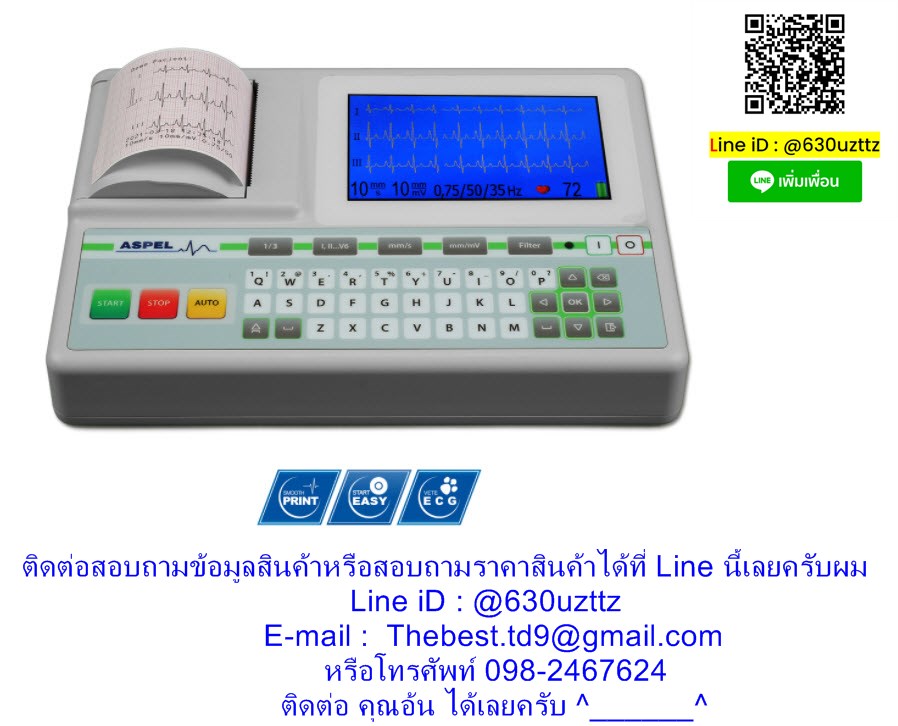

ASPEL ECG GREEN v.06.101W (Veterinary electrocardiograf )
AsCARD Green v.06.101W is a 1-, 3-, 6- and 12-channel ECG unit which enables to make electrocardiogram in full 12 leads. Intended for ECG examinations of adult and paediatric patients aimed at identification of cardiological abnormalities, myocardial ischaemia or infarction. The device is intended for use in healthcare facilities by duly trained personnel. ECG examination may be recorded in manual or automatic mode with the ability to perform the analysis and interpretation.
Electrocardiograph is based on advanced microprocessor technology .It is equipped with a thermal printer with high-resolution head and 4,3″ LCD display. A touch panel and high-tech membrane keyboard makes this device intuitive in usage and its menu navigation exceptionally easy. This light-weight, small-footprint and battery powered cause that device can be easily transported to any location. With plastic casing and foil covered keyboard, the device is neat and easy to clean.
Technical specifications
dimensions: 220x153x55 mm (LxWxH)
weight: < 0,6 kg
recording of standard 12 ECG leads
saving the ECG signal simultaneously from all the 12 leads during the automatic recording, together with the date and time of the examination, filter settings, examination recording time and, optionally, patient's data, in the internal memory
printout of the automatic ECG recording from internal memory, in groups of three leads
printout of the analysis, interpretation of automatic ECG examination
display of 1, 3, 6 or 12 lead ECG recordings
ECG printout in 1-, 3-, 6- or 12-channel modes
attaching the name of the patient to the ECG printout
LCD TFT (4,3", 480x282) touch screen
membrane alphanumeric keyboard with functional keys
graphical menu displayed on the screen for easy operation using keyboard
automatic analysis and interpretation in compliance with EN 60601-2-25 (CSE database) - interpretation dependable on age & sex of a patient
memory of the last automatic examinations, with a limit from 5 to 1000
up to 130 automatic examinations in battery mode
continuous heart rate (HR) measurement and display
automatic detection of QRS complex
adapted to direct operation on an open heart
power line interference filter: 50 Hz, 60 Hz
muscle interference filter; filters available: 25 Hz, 35 Hz, 45 Hz
contour line filters; filters available: 0.15 Hz, 0.45 Hz, 0.75 Hz, 1.5 Hz
detection of electrode detachment, independent for each channel
selectable channel to detect heart rate
thickness of the printing ECG waveforms line to choose from: normal or bold
presentation of the curves in the standard layout or Cabrera layout
multilingual menu
external USB communication port to connect a PC and the CardioTEKA software, for real-time transmission of ECG signal
acoustic signalling of detected beats
protection against defibrillation pulse
detection and presentation of stimulating pulses on printout
automatic examination with the printout of patient data and clinic data
battery power saving functions
Standard equipment
clamp electrodes (set of 4)
chest electrodes (set of 6)
jaw crocodile clip (set of 5)
KEKG-30R ECG cable
KEKG-30W Veterinary cable
medical power connector M12-15
ECG paper RB1 58 mm wide (1 roll)
ECG gel
operation manual
