Part number
0310305
Product name

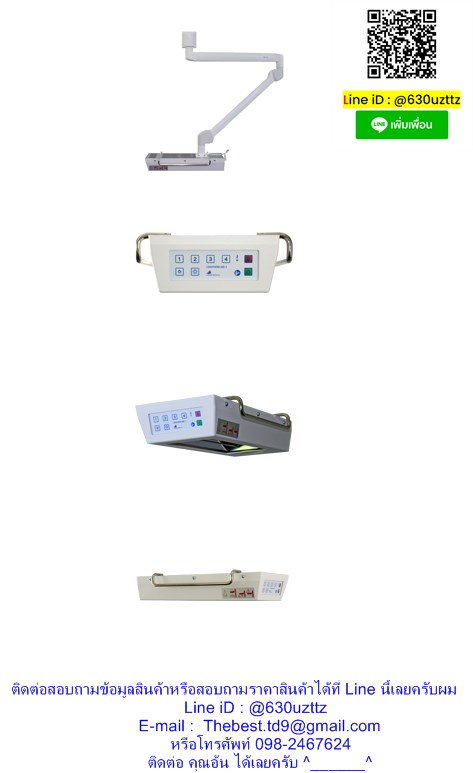

Radiant warmer Ceratherm 600-3
GTIN / EAN13
5051826024102
double jointed wall mounting & with height adjustment
Model: 521A-60023-3-EX
Infant Resuscitation
Radiant Warmers
Part number
0310305
Product name :
Radiant warmer Ceratherm 600-3
GTIN / EAN13
5051826024102
double jointed wall mounting & with height adjustment
Model: 521A-60023-3-EX
Ceratherm 600-3 radiant warmers provide the ideal solution to the requirements of daily practice, combining ease of use and safety.
Ideal for use in delivery suites, special care baby units, clinics, paediatric wards, accident & emergency and operating theatres.
Compact housing
Color white RAL 9010 (*)
Ceramic 600-Watt heating element with fast warm-up
Four programmable warming settings
Computer-controlled heat regulation and alarm monitoring
LED lighting for dazzle-free illumination of the treatment area
Two programmable levels of illumination intensity with soft transitional on/off
Mains voltage 230V +/- 10%, 50 – 60 Hz
TUV IEC-601 tested
Technical Data
Mains voltage
Heating element
Lighting
Radiator performance
Certified according to
Conformity
IP Protection Class
Heating element guarantee
Contamination Level Class
Electrical Protection Rating
Medicinal Product Class
Applied Standards
230 V �10%, 50-60 Hz
Ceramic, 600 W
LED lamp 12 V / 1 W
4 steps, 0 – 99%
IEC 601-2 TUV/CE
CE (Directoive 93/42/EEC, Annex II)
IP20
5 years
2
I (with protective earth connection)
llb (Directive 93/42/EEC, Annex IX, Rule 9)
EN 60601-1:2007, EN 60601-2-21:2010
EN 60601-1-2:2006
Alarms
Acoustic and visual 15-minute reminder alarm. As a safety feature – if it is not acknowledged, then the heat output is automatically switched to 20% of the maximum output
Mains Failure
Technical malfunction (with error code)
Dimensions
Warmer
Weight
55 cm (L) x 21 cm (W) x 9 cm (H)
4.3 kg (without accessories)
Front panel controls and indicators:
Heat setting 1 (illuminated button).
Output setting programmable – default 20%
Heat setting 2 (illuminated button).
Output setting programmable – default 50%
Heat setting 3 (illuminated button).
Output setting programmable – default 75%
Heat setting 4 (illuminated button).
Output setting programmable – default 98%
Heat output LED indicator
Alarm reset (illuminated button)
Lamp (low setting). Illumination level programmable – default 20%
Lamp (high setting). Illumination level programmable – default 100%
ON/Standby (illuminated button)
Available in several configurations including:
wall mounted, ceiling mounted and free standing.
Ceretherm 600 3 Radiant Warmer Leaflet
