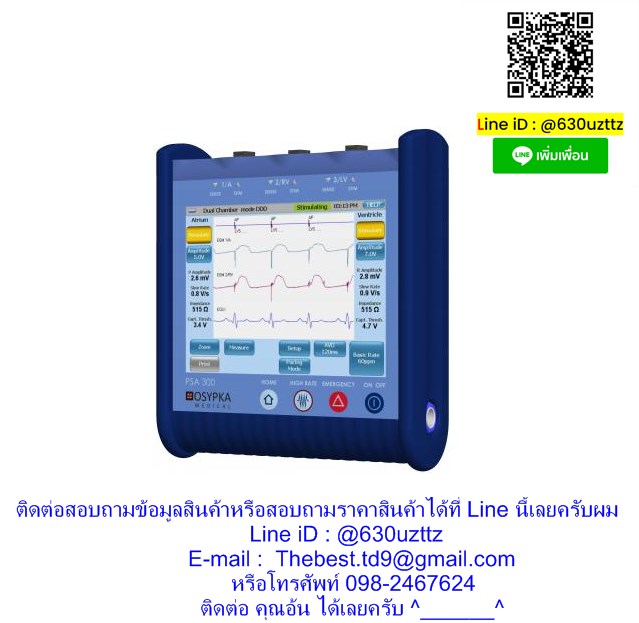

OSYPKA Medical® – PSA 300
Standalone, Handheld, Three Chamber Pacing System Analyzer
Product Description:
The PSA 300™ is a standalone, handheld, three-chamber pacing system analyzer and EP stimulator for use in pacemaker implantation and electrophysiology studies. Boasting an adaptive touchscreen interface, the PSA 300 is able to employ only those functions and measurements which are relevant to the specific application, reducing clutter and confusion for the engaged electrophysiologist or EP tech.
The combination of breakthrough technology and 25 years of experience in cardiac pacing make the PSA 300 the most advanced pacing system analyzer on the market:
Compact size
6.5” touch screen
Rechargeable battery
Zoom feature for live ECG and IEGM analysis
Customizable electrical stimulation system
(UHS – Universal Heart Stimulator)
Intuitive User Interface
Boasting an adaptive 6.5” touch screen interface, the PSA 300 is able to employ only those functions and measurements which are relevant to the specific application, reducing clutter and confusion for the engaged electrophysiologist or EP technician.
Data Management
Measurement data can be stored and exported in report format to a USB memory device.
Universal Heart Stimulation:
The UHS mode of the PSA 300 provides a fully customizable electrical stimulation system for the programming of trained electrical impulses. UHS mode functions as a diagnostic tool in EP examinations, particularly in clinical protocols for the induction of supra-ventricular tachycardia. The PSA 300 offers a simple but intelligent interface for programmable electrical stimulations (PES), allowing for the programming of synchronous and asynchronous burst trains, or incremental train patterns (ramp).
Indications for Use
The PSA 300 is designed for use during the implantation of pacemakers and defibrillators to assess the placement of pacing leads and to determine the appropriate and optimal pacemaker settings for the implanted device. The PSA 300 also functions as a three chamber temporary pacemaker and has applications where such pacing modes are indicated for therapeutic, prophylactic, or diagnostic purposes.
The PSA 300 provides six operating modes for each possible application:
1/A – Atrial channel
2/RV – Right ventricular channel
3/LV – Left ventricular channel
DDD – AV-synchronous stimulation
DDD (BV) – Bi-ventricular stimulation
UHS – Universal Heart Stimulation (EP Stimulator)
Specifications
Dimensions 196 mm x 172 mm x 56 mm
Weight 1100g
Battery Rechargeable: 4 hours
Basic Rate 30 – 220 ppm
High Pacing Rate 60 – 1000 ppm
Stimulation Amplitude 0.1 – 18 V
Pulse Width 0.1 – 2.5 ms
Sensitivity 0.2 – 20 mV
Refractory Period Atrial: 250 – 500 ms
Ventricular: 250 – 500 ms
Pacing Modes 0A0, 0V0, 0D0, AAI, A00, VDD, VDI, VVI, V00, DDD, DDI, D00
All ventricular and dual modes also bi-ventricular.
Programmable: UHS (universal heart stimulator)
