1. Size : 100 mm x 70.8 mm x 37 mm

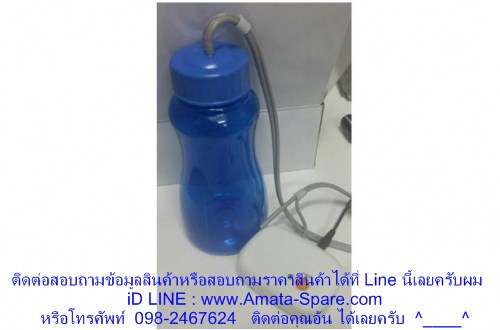

2. Configuration : 1 pc of main unit for automatic water supply; 1 pc of water supply bottle; 1 pc of power supply adapter.

3. Power supply adapter Power input : ~100V – 220V 50Hz / 60Hz Power output : 10VA Output : DC 5V / 1A Built-in fuse : T1A250V

4. Performance of main unit

Output air pressure : 10KPa – 53KPa

Work noise : <80dB

Inspection methods : The power light is on when the machine correct power-on. When the machine does not link to the double tube, air flow should be current outflow, and at the same time, main pump will have “DaDa” Voice.

5. Operating environment

Temperature : +5 ํC + 40 ํC

Relative humidity : 80%

Air pressure : 70KPa ~106KPa
